5560-010
Display Units: inches |  metric
Request Quick Quote for this part.

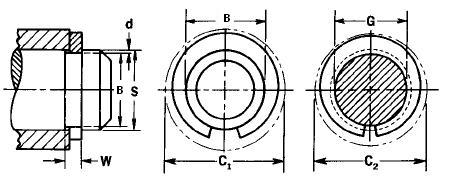

Ring Specs
(D) Free Diameter: 0.090 +0.002 / -0.002 in.
(t) Thickness: 0.020 +0.002 / -0.002 in.
(b) Radial Wall:
Groove Specs:
(B) Application Diameter: 0.101 in.
(G) Groove Diameter: 0.093 +0.001 / -0.001 in.
(W) Groove Width: 0.024 +0.002 / -0.000 in.
Groove Depth: 0.004 in.
Other Specs
Approximate Weight per 1000: 0.036 lbs.
(C1) Clearance Diameter Expanded over Shaft:0.160in.
(C2) Clearance Diameter When Sprung Into Groove:0.152in.
(Pg) Theoretical Thrust Load Capacity - Groove Yield:
Notes: Yield Strength of Groove Material (Ys): 45,000 psi. Calculated using a safety factor (K) of 2

Equation:
Pg = [ Cf * B * d * Ys * pi ] / K
    = [ (1) * (0.101 in.) * (0.004 in.) * (45,000 psi) * 3.14 ] / 2		28lbs.
(Pr) Theoretical Thrust Load Capacity - Ring Shear:
Notes: Ring Material: Carbon Spring Steel (SAE 1060-1090). Shear Strength of Ring Material (Ss): 100,000 psi. Calculated using a safety factor (K) of 4

Equation:
Pr = [ Cf * B * t * Ss * pi ] / K
    = [ (1) * (0.101 in.) * (0.020 in.) * (100,000 psi) * 3.14 ] / 4		158lbs.
Industry Equivalent Part Number(s):
5560-010, 5560-10
